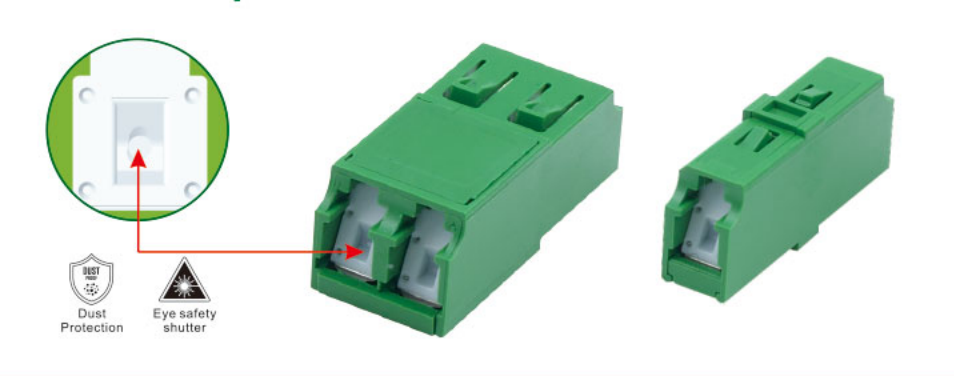

Dust proof and laser proof acheived in the design
Unlimited splicing for the dense environments
Easy and efficient for operation
Highly reliable structure design
Built with high performance material
> Low Insertion Loss
> Compliant with Telcordia GR-326-Core,IEC,TIA
> High Precision of Mechanical Dimensions
> RoHS Compliance
> Available Ceramic or PB Sleeves
> Avaliable Hybrid Adaptors/Shutter Adaptor
> CATV System
> Local Area Networks
> Telecommunication Networks
> FTTH and FTTx
> Testing Equipment
> Fiber LAN
Optical Parameter | W/ Japanese Ceramic Sleeve | W/ Chinese Ceramic Sleeve | W/ P.B Sleeve |
Insertion Loss | <0.10dB | <0.20dB | <0.30dB |
Durability | <0.10 dB typical change, 1000 times | <0.20 dB typical change, 1000 times | <0.30 dB typical change, 500 times |
Operating Temp. | -20 ~+ 75℃ | ||
Storage Temp. | -40 ~+ 85℃ | ||
