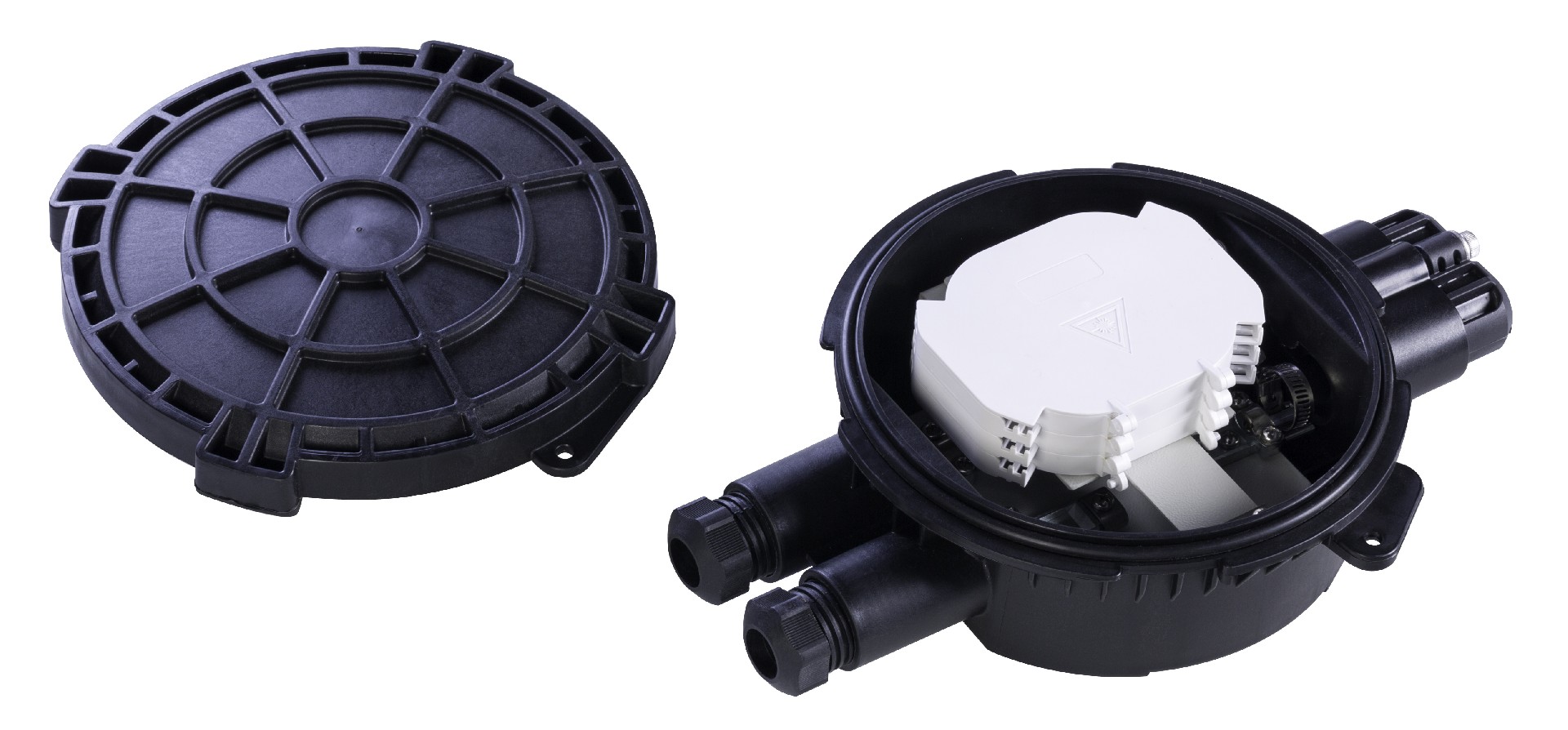

AO-09-9401 hinged closure is a piece of versatile fiber optic connection equipment with reasonable interior structural design.
It is mainly employed in the optical communication links for straight joint and distribution and relevant protection.

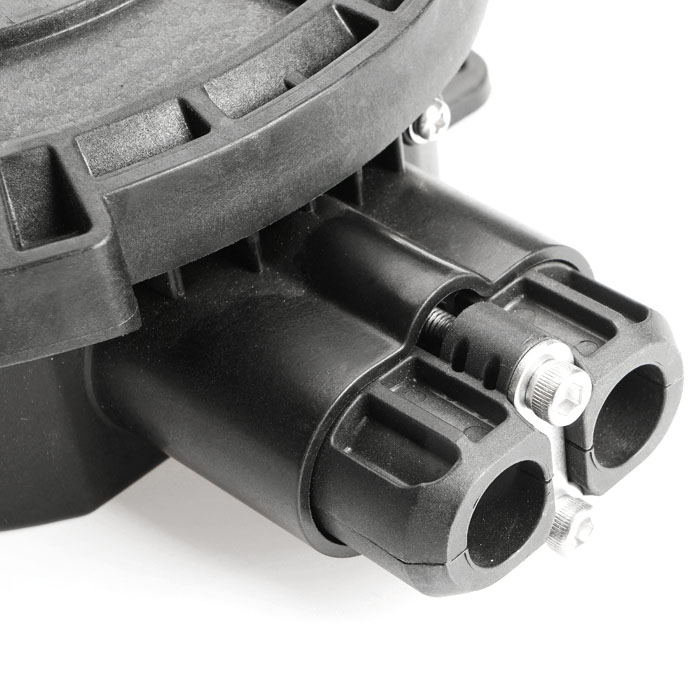

Ports: 1 uncut port, 2 branch ports, φ8-17.5mm;

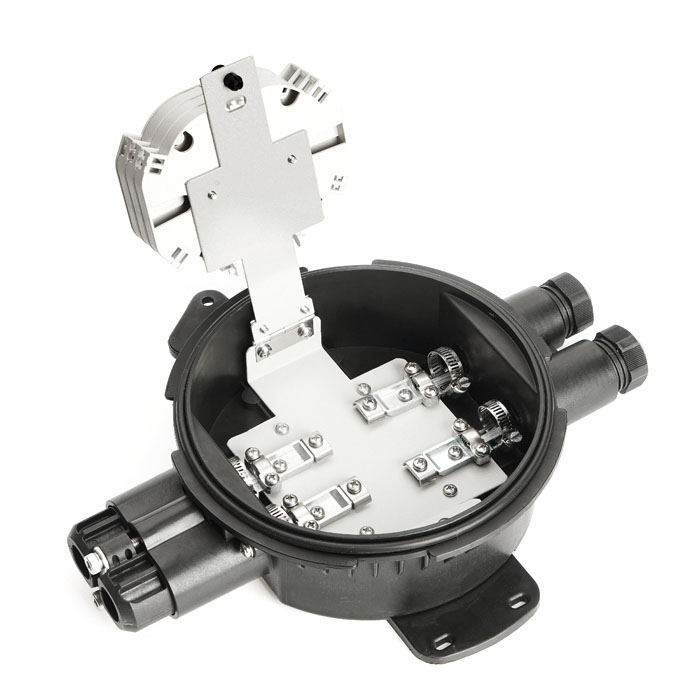

Capacity: 3 psc 12-core splice trays, max. 36F;
Sealing: spiral-style mechanical seal for the box body, IP68;
Installation: pole/wall/duct mounting, underground;
Original structure, compact shape;
Satisfactory space for the placement of fiber joints and fiber storage, preventing the joints from being influenced by the external environment.
Telecommunication Networks
CATV Networks
Local Area Networks
Underground,Aerial,Buried
Vault and Buliding environments
| Type | Size(mm) | Weight | Inner carton size(mm) | Outer carton size(mm) |
| AO-09-9401 | 295×220×90 | 1.8-2.0kg | 320×235×110(1 pcs) | 495×345×620(10 pcs) |
